48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire

Name: 48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire
Brand: TW-SCIE
Price: 1 USD

48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire Manufactures

Brand Name : TW-SCIE

Model Number : OPGW

Certification : CE, ROHS, REACH, SGS, ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 20 working days

Packaging Details : wooden-iron reel

Supply Ability : 1000 KM PER MOUTH

Fiber : G652D, G657A1, G657A2

Fiber Count : 2-48 fibers

Cable diameter : 40-80mm

Package : iron-wooden reel

Optical Unit : SST,PBT

Layer : AS, AA

Application : Telecommunication, Aerial

Operating temperature : -40°C to + 70°C

Contact Now

2-48 Core Optical Fiber Composite Overhead Ground Wire OPGW

48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire

Description

The central stainless steel tube cable and the OPGW are widely used for electric and communication needs. OPGW has multiple functions and can be customized for different structures.

Features

Fibers are protected and lightweight with excellent mechanical and electrical properties. They withstand high stress and match common ground wires.

Speicfications

	Classification	Material	Value
Construction	Optical Fibre	G652D/G655 etc.	2 - 48
	Protection Tube	Stainless steel tube	1.5 - 6mm
	Stranded Line	AS wire/AA wire/Al Rod	1.5 - 6mm
	Max. Diameter		18mm
	Max. Cross Section		200mm2
Characteristic	According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
	Max. Tensile Strength (RTS ) (kN)		280
	Max. Crush Strength(N/100mm)		2200
	Max. Short Current Capacity (40℃-200℃)(kA2s)		100
	Min. Bending Radius (Dynamic)		20D
	Min. Bending Radius (Static)		15D
Environment Performance	Installation (℃)		-10 to +50
Environment Performance	Transportation and Operation (℃)		-40 to +65

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

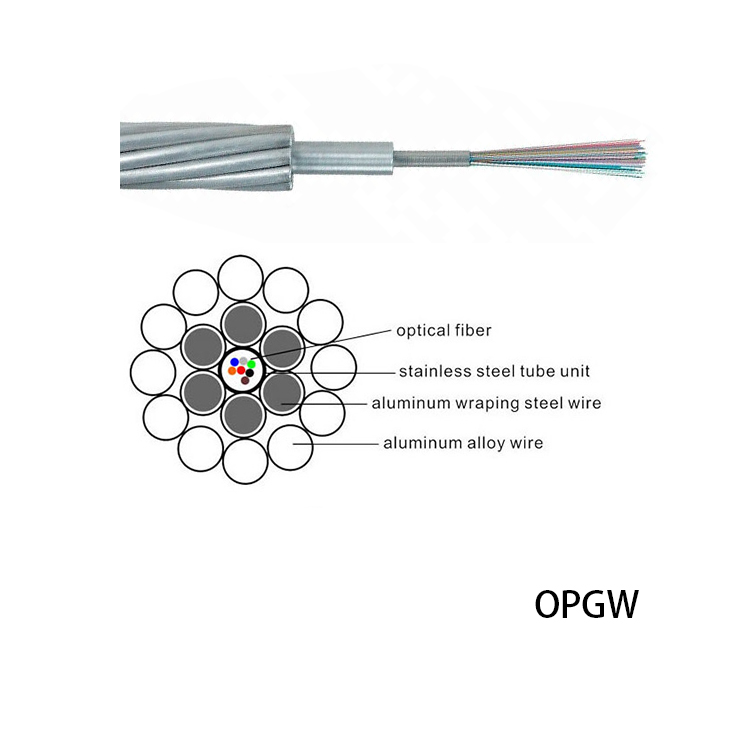

Structure and Product Pictures

Packing & Shipping

Cable is supplied on separate drums in specified lengths with plastic protection caps, and a test report for each fiber.
